Installation

Here you’ll find some useful notes on setting up and running 4C.

4C is developed and used on Linux but other Unixes might work as well. Additionally, 4C can be compiled under Windows using the WSL (Windows Subsystem for Linux), which provides a complete Linux Environment within the Windows operating system.

External dependencies

4C requires the following general tools to write parallel C++ code:

  • git

  • C++ compiler with C++20 compatibility (e.g. gcc 13, clang 18)

  • MPI installation

  • CMake

  • Ninja

4C is built on top of other powerful external dependencies. The top-level directory dependencies contains information about these dependencies. The following list shows the most important ones:

External solver and linear algebra:

  • Trilinos (supported versions are listed in dependencies/supported_version/Trilinos.txt)

  • SuiteSparse including Umfpack (recommended version: 5.4)

  • SuperLUDist (recommended version: 7.2.0)

  • BLAS

  • LAPACK

Graph and domain partitioner:

  • Metis (recommended version: 5.1.0, included in SuiteSparse)

  • ParMETIS (recommended version: 4.0.3)

Miscellaneous:

  • Qhull (recommended version: 2012.1, install script

  • CLN (recommended version: 1.3.4),

  • FFTW

  • HDF5

  • ArborX (optional)

Post processing:

  • Paraview (recommended version: 5.5) - newer versions may fail some post processing tests.

Build information

For many external dependencies, you’ll find an installation file for the recommended version in the <4C_source>/dependencies/current directory. Additionally, some dependencies are accepted in multiple versions. During configuration, 4C will check the version of the installed dependency and warn you if it is not a supported version.

SuiteSparse

4C uses SuiteSparse indirectly via the Trilinos package Amesos/Amesos2 for directly solving linear systems of equations. See the SuiteSparse repository for details and downloads.

After downloading the package, the configure file can be found in SuiteSparse-5.4.0/SuiteSparse_config/SuiteSparse_config.mk. As 4C uses BLAS/LAPACK in forms of libblas and liblapack, the respective linker flags need to be changed!

SuperLUDist

4C uses SuperLUDist indirectly via the Trilinos package Amesos/Amesos2 for directly solving linear systems of equations in distributed memory fashion. See the superLU repository for details and downloads.

ArborX

ArborX can be used as optional dependency inside 4C for utilizing it’s tree-based search algorithms. See the ArborX repository for details and downloads.

Trilinos

This external dependency can be downloaded from the Trilinos Github repository. Currently supported versions are listed in dependencies/supported_version/Trilinos.txt.

Download and install

After you have installed all the external dependencies, you should download and install 4C itself.

Access the repository

If you only want to use 4C without contributing to the project, you can simply clone the repository:

cd <someBaseDir>
mkdir <sourceDir>
git clone git@github.com:4C-multiphysics/4C.git <sourceDir>
cd <sourceDir>

where <someBaseDir> is some directory on your machine and <sourceDir> will contain the 4C source code. You can choose names and locations of these directories freely.

Your directory tree should look like the following:

<someBaseDir>/
    <sourceDir>

If you want to contribute to the project via pull requests, you should fork the repository. We recommend setting your forked repository as origin and the 4C-multiphysics/4C repository as upstream. Details about forks, how to fork a repository, how to clone the forked repository, and how to configure git to sync with the upstream repository can be found in the GitHub Docs.

You can set your local main branch to track the upstream``main`` branch with the following command:

git branch main --set-upstream-to=upstream/main

Further, you need to create a python virtual environment for development. In the source directory, execute:

./utilities/set_up_dev_env.sh <optional-path-to-python-executable>

If the optional path to the python executable is not given, the script will use python3 as the default. If your python3 is too old or not available, you can specify the path to a compatible python version. The script will let you know if the python version is not compatible.

This script installs pre-commit and sets up the pre-commit hooks for the repository.

Note

You only need to execute this command once. However, when changes in the virtual python environment have been made, you must generate a new environment locally as well. You will be reminded of this when you try to commit with an outdated virtual environment.

Configure

4C enforces an out-of-source build, i.e. your build directory may not be the same as your source directory. This is a good practice to keep your source directory clean. Instead, create a build directory. Many development tools work well when the build directory is a subdirectory of the source directory. A possible directory structure could look like this:

<4C_home>/
   build/
     debug/
     release/
     other_configuration

That said, you can create a build directory wherever you want. This is just a suggestion we find useful in daily work.

4C uses cmake for configuration and creation of a build. We strongly recommend to use preset files for cmake. The command to run is

cmake --preset=<name-of-preset> <sourceDir> | tee config$(date +%y%m%d%H%M%N).log

Thus, a preset name needs to be passed to cmake via the command line argument --preset. Use

cmake <4C_home> --list-presets

to get a list of all available presets.

In general, it is highly recommended to create your own preset, which is stored in <4C_home>/CMakeUserPresets.txt. To create your own preset you may start with the presets used in our CI, see presets/docker/CMakePresets.json. In a preset within this file, you should define a few options that are important to your specific build:

  • the build type. This is given by the variable CMAKE_BUILD_TYPE and can be DEBUG or RELEASE.

  • the build directory. It is good practice to indicate the value for CMAKE_BUILD_TYPE in the folder name, e.g. by "binaryDir": "<4C-basedir>/builds/release-build" (the folder name is completely up to you).

More information about the cmake presets can be found here.

Note

When you see command |& tee something$(date +%y%m%d%H%M%N).log, that is just a means of running a command and sending the output both to the screen and to a timestamped log file. This is by no means necessary, but if you run into problems, having these timestamped log files can be quite useful in debugging what’s gone wrong.

Build

Now you may run the compile command within the build folder.

ninja -j <numProcs> full |& tee build$(date +%y%m%d%H%M%N).log

where <numProcs> is the number of processors you want to use.

Note

After the first build, it is rarely necessary to reconfigure 4C &mdash; only the build-command is required. cmake is invoked automatically during the build process if something changed within CMakeLists.txt.

To verify that the build was successful, it is highly recommended to run the test suite, at least the minimal version of it. You will find the information about it in the testing section below.

Set-up your IDE

We recommend to use an Integrated Development Environment (IDE) for code development because it eases various aspects of code development when working on large projects. Current popular choices in the 4C community are:

CLion

Setting up CLion

Let’s assume that you already have cloned the repository and created a build directory as outlined above. Open CLion and open the 4C source directory. CLion understands CMake preset files, so configuration is easy. Consult the CLion documentation for more information on how to set up a project.

Enable debugging with CLion

The prerequisite is that you already have set up a debug configuration as explained above. Make sure you have enabled a debug profile in your cmake settings.

  • Select Edit Configurations… from the dropdown list right to the “green hammer”.

  • Click + to Add a new configuration and select CMAKE Application:

    • Enter a descriptive Name

      • serial debugging:

        • Select 4C from the dropdown menu for both Target and Executable

      • parallel debugging:

        • Select 4C from the dropdown menu for Target

        • Enter <PathToMpirun>/mpirun to Executable (find with which mpirun in console)

        • Add the arguments for mpirun: -np <NumberOfProcesses> <PathTo4C-debug>/4C <PathToTest/TestName.dat> <OutputPreFix>

    • Add any other parameters you need for the program to run (for example, the input file name and the output basename) to the arguments.

    • Enter the path you want to run the program in (maybe the one where your input file is located) to Working directory

    • Remove everything in Before launch and click ok

  • Select the created configuration from the dropdown list

  • Click on the green beetle in the toolbar to start a debug run.

The program will run until it reaches the end, a breakpoint, or a segmentation fault.

Visual Studio Code

Visual Studio Code is a code editor optimized for building and debugging modern web and cloud applications. It can also be used for developing 4C. Visual Studio Code can connect to a remote computer so you can work on your home computer via SSH, see here.

Setting up VS Code

Let’s assume that you already have cloned the repository, created a build directory and created your own CMakeUserPreset.json as outlined above. To include the 4C source code into VS Code and enable VS Code to build 4C, follow these steps:

  1. Install C/C++ extension for VS Code

  2. Install cmake extension for VS Code

  3. Open folder with source code of 4C

  4. Select cmake preset of your choice

Setting up VS Code for Remote Development

Start from scratch without doing the instructions from above. Do not clone your repository on your local machine, all files remain on the remote machine) Steps to do on your (remote) workstation:

  1. Install VS Code

Steps to do on your local machine:

  1. Install VS Code

  2. Install Remote development pack plugin on your local machine: <https://marketplace.visualstudio.com/items?itemName=ms-vscode-remote.vscode-remote-extensionpack>

  3. Add your remote workstation over the ssh connection via the Remote Explorer (one icon on the left side)

  4. connect to your remote workstation

  5. Install C/C++ extension via GUI (will install it on your local and remote computer)

  6. Open 4C source directory and start coding

Clangd Language Server (Clang-tidy)

To profit from clang-tidy (and many more features like cross-references, refactorings, code completion, navigation, find unused includes), there is an vs code extension that enables clangd for VS Code. For a full list of features see here: <https://clangd.llvm.org/features.html>

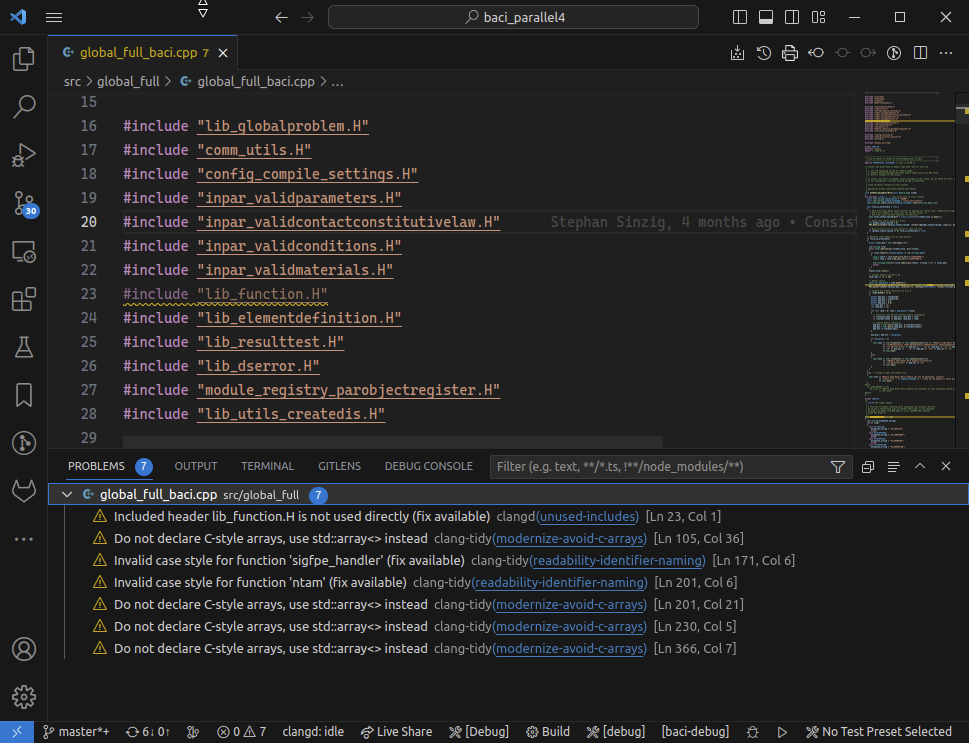

Screenshot of the clangd capability for VS Code

Setup

  1. Install extension clangd from the marketspace: <https://marketplace.visualstudio.com/items?itemName=llvm-vs-code-extensions.vscode-clangd>

  2. add a .clangd configuration file in your source directory. An example could look like this:

CompileFlags:
    CompilationDatabase: /path/to/build_directory  # update this to your configuration
    Compiler: /usr/bin/mpic++
    Add: [-I/usr/lib/x86_64-linux-gnu/openmpi/include/openmpi, -I/usr/lib/x86_64-linux-gnu/openmpi/include, -pthread, -L/usr/lib/x86_64-linux-gnu/openmpi/lib, -lmpi_cxx, -lmpi] # take this from mpic++ --showme
Index:
    Background: Build
Diagnostics:
    UnusedIncludes: Strict

Debugging with VS Code

If you want to use VS Code for debugging, you need to add debugging configurations in .vscode/launch.jsonand a debug version of 4C. In the following, the following folder structure is assumed:

  • <4C-sourcedir>: Path to the source files

  • <4C-debug-execdir>: Path to the debug build version

  • <4C-problemdir>: Path to the run directory

In the following, different configuration examples are given. They have to be placed in .vscode/launch.json in the configurations-list.

Debugging a serial run

{
    "name": "Debug input file",
    "type": "cppdbg",
    "request": "launch",
    "program": "<4C-debug-execdir>/4C",
    "args": ["/path/to/inputfile.dat", "<4C-problemdir>/xxx"],
    "cwd": "<4C-problemdir>",
    "setupCommands": [
        { "text": "handle SIGPIPE nostop noprint pass", "description": "ignore SIGPIPE", "ignoreFailures": true }
    ]
}

Debugging a serial restart

{
    "name": "Debug input file from restart",
    "type": "cppdbg",
    "request": "launch",
    "program": "<4C-debug-execdir>/build_debug/4C",
    "args": [
        "/path/to/inputfile.dat",
        "<4C-problemdir>/xxxx"
        "restart=1",
        "restartfrom=<4C-problemdir>/xxx"
    ],
    "cwd": "<4C-problemdir>",
    "setupCommands": [
        { "text": "handle SIGPIPE nostop noprint pass", "description": "ignore SIGPIPE", "ignoreFailures": true }
    ]
}

Debugging a unit test

{
    "name": "Unit test",
    "type": "cppdbg",
    "request": "launch",
    "program": "<4C-debug-execdir>/Unittests/unittests",
    "args": [
        "Mat::Elastic::CoupAnisoExpoAnisotropyExtension_TestSuite"
    ],
    "cwd": "<4C-problemdir>",
}

Debugging a MPI application

All-Stop mode

This mode is the “normal” mode. On a breakpoint, all processes make a pause.

{
    "name": "Debug MPI input file (all stop)",
    "type": "cppdbg",
    "request": "launch",
    "program": "/usr/lib64/openmpi/bin/mpirun",
    "args": [
        "-np",
        "3", // specify number of mpi ranks here
        "<4C-debug-execdir>/4C",
        "/path/to/inputfile.dat",
        "<4C-problemdir>/xxx",
    ],
    "cwd": "<4C-problemdir>",
    "setupCommands": [
        {
            "description": "On a fork, keep gdb attached to both processes.",
            "text": "-gdb-set detach-on-fork off",
            "ignoreFailures": false
        },
        {
            "text": "-gdb-set schedule-multiple on",
            "ignoreFailures": false
        }
    ]
}

Tracking down race conditions

With this method, you have control to each processor during the execution. However, you have to attach each processor manually. Start 4C with the following command in an extra terminal:

~/build_debug$ mpirun -np 2 ./4C input.dat out --interactive
Global rank 0 with PID 17235 on helmholtz.lnm.mw.tum.de is ready for attach
Global rank 1 with PID 17236 on helmholtz.lnm.mw.tum.de is ready for attach

** Enter a character to continue >

In the output, you see for each mpi rank the respective process id. Now you can attach gdb to each process with the following configuration:

{
    "name": "Attach gdb",
    "type": "cppdbg",
    "request": "attach",
    "program": "<4C-debug-execdir>/4C",
    "processId": "${command:pickProcess}",
    "MIMode": "gdb"
}

Start it two times and choose in the prompt the respective process id. Wait until both instances are connected and then start the computation by pressing any key in the 4C terminal.

Build 4C with custom targets

Above it was shown how to build all executables that come with 4C. However, one can also build just a subset or even specific libraries. The command to build 4C these specific targets is:

ninja -j <numProcs> <customTarget>

where <numProcs> denotes the number of processors and <customTarget> the target you want to build (see below).

Custom target specifiers

4C offers a variety of additional target specifiers <customTarget> (defined in CMakeLists.txt) that can be used within the build command. Here’s a list of all valid custom target specifiers with a brief explanation:

Executables:

  • 4C generate the main 4C executable only

  • post_processor build the post-filters only

  • post_monitor build a nodal data extraction application

  • full generate all executable targets of 4C

Documentation:

  • documentation create the main documentation

  • doxygen create the (developer-oriented) Doxygen documentation

Refer to CMakeLists.txt for a definition of all other target specifiers.

Note

When omitting the custom target specifier in the build command, the default specifier 4C is used.
